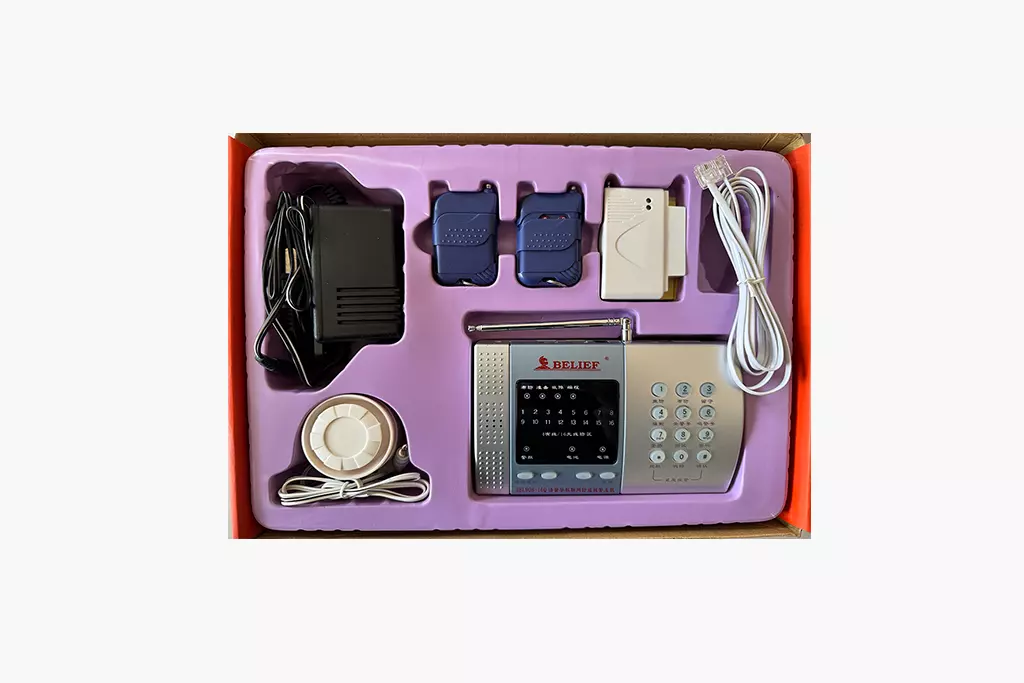

System Function Introduction:

The BEL908-16L/Q series networked anti-theft alarm host, developed by twelve years of security technology, is highly praised by users for its advanced security functions and is a well-known and excellent alarm host in the anti-theft alarm industry.

1. Yes/wireless compatible, with a total of 16 zones, including up to 4 wired port zones and up to 16 wireless port zones.

2. It can support 8 remote control operations simultaneously, with ultra long wireless distance and learning style code recording, which is convenient and fast.

3. Both local keyboard and remote phone can perform daily operations and programming on the host, with simple settings and easy installation and use.

4. Up to 6 phone numbers can be set, including 2 for the networked alarm center and 4 for user voice calls.

5. The self-protection performance is super strong, with on-site alarm prompts for alarm signal disconnection and telephone line faults, and the information is transmitted to the center.

6. The standard C.ID protocol ensures smooth communication and is widely used nationwide, making it an ideal product for implementing security measures in homes, shops, and other areas.

7. Remote telephone monitoring of the scene and the ability to remotely sound alarm signals to deter thieves on site.

8. Connect the external alarm signal, and the thief will flee upon hearing the wind.

9. The telephone voice alarm for reporting police situations and defense zones enables users to real-time control the details of the alarm and lead the industry.

10. 24-hour monitoring of wireless detector battery and tamper proof status, once low voltage or removed, call the center and user immediately.

Main technical parameters:

Working voltage: 12VDC

Auxiliary power output: 12VDC, maximum 500mA

Alarm signal output: 12VDC, maximum 350mA

Monitoring resistance at the end of the line: 1K ± 280 Ω

Operating environment: Working temperature of 10-50 ℃, relative humidity of 30-70%.
